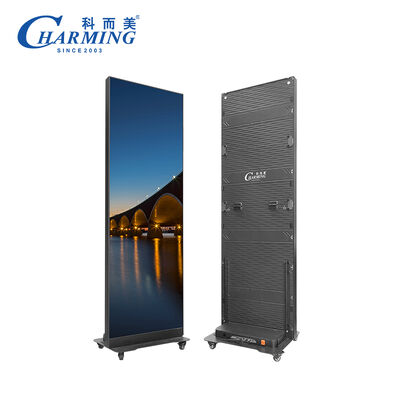

High Refresh Rate GOB Technology Foldable LED Poster Display with Intelligent Mobile Control
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Charming |
| Zertifizierung: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Modellnummer: | P1.86、P2、P2.5 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 2 Stk |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Kartonetui, Holzetui, Flightcase |
| Lieferzeit: | 30 Werktage nach Zahlung |
| Zahlungsbedingungen: | L/C, T/T, Western Union, Paypal, Bargeld |
| Versorgungsmaterial-Fähigkeit: | 500 PCs pro Woche |
|
Detailinformationen |
|||
| Blickwinkel: | 140° | Schutzstufe: | IP43 |
|---|---|---|---|
| Kabelnetzmaterial: | Aluminiumlegierung | Wartungsmethode: | Frontwartung |
| Graustufe: | 14-16 Bit | Arbeitstemperatur: | -20 bis 40 °C |
Produkt-Beschreibung
High Refresh Rate GOB Process Foldable LED Poster Display With Audio
Product Overview
High Refresh Rate Foldable LED Poster Screen with GOB Technology and Intelligent Mobile Control
Advanced foldable LED poster screen featuring high refresh rate technology, GOB protection, and intelligent mobile control for superior display performance.
Product Features
- High Refresh Rate
- GOB Technology
- Intelligent Mobile Control
Technical Specifications
| Parameter | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.86mm | 2mm | 2.5mm |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43Scan | 1/40Scan | 1/32Scan |
| Pixel Density (dot/m) | 288906 | 202500 | 160000 |
| Brightness (CD/m²) | 600 | 600 | 800 |
| Dimension | 640*1920*490mm |
| Max. Power | 600W |
| Cabinet Weight | 48.8kg |
| Refresh Rate | 7680Hz |
Installation Guide
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Packaging Options
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
