The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity

Produktdetails:

Herkunftsort: China
Markenname: Charming
Zertifizierung: CE,ROHS,LVD,EMC,CB,BIS,UL
Modellnummer: P2.22

Zahlung und Versand AGB:

Min Bestellmenge: 10 Stück
Preis: Verhandlungsfähig
Verpackung Informationen: Carton Case, Holzkoffer, Flugkoffer
Lieferzeit: 7 Arbeitstage nach der Zahlung
Zahlungsbedingungen: Western Union, L/C, T/T, Paypal, Bargeld
Versorgungsmaterial-Fähigkeit: 10000 PCs pro Woche
Bestpreis Kontakt

Detailinformationen

Dimension (mm): 320*160 mm Hellenheit (CD/): >700 CD/m²
Pixeldichte ((Punkte/m2): 202500Punkt/㎡ Schutzniveau: IP42
Graustufe: 14-16 Bit LED Standard: SMD2020
Scanmodus: 1/36Scan Modul Höchstleistung (w): DC 5V
Lebensspanne: 100000 Stunden
Hervorheben:

P2.22 LED video wall display

,

202.5K pixel density LED display

,

700 nits brightness video wall

Produkt-Beschreibung

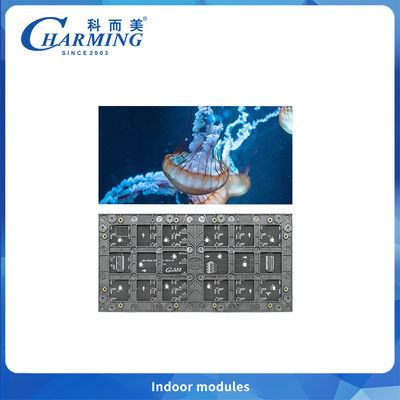

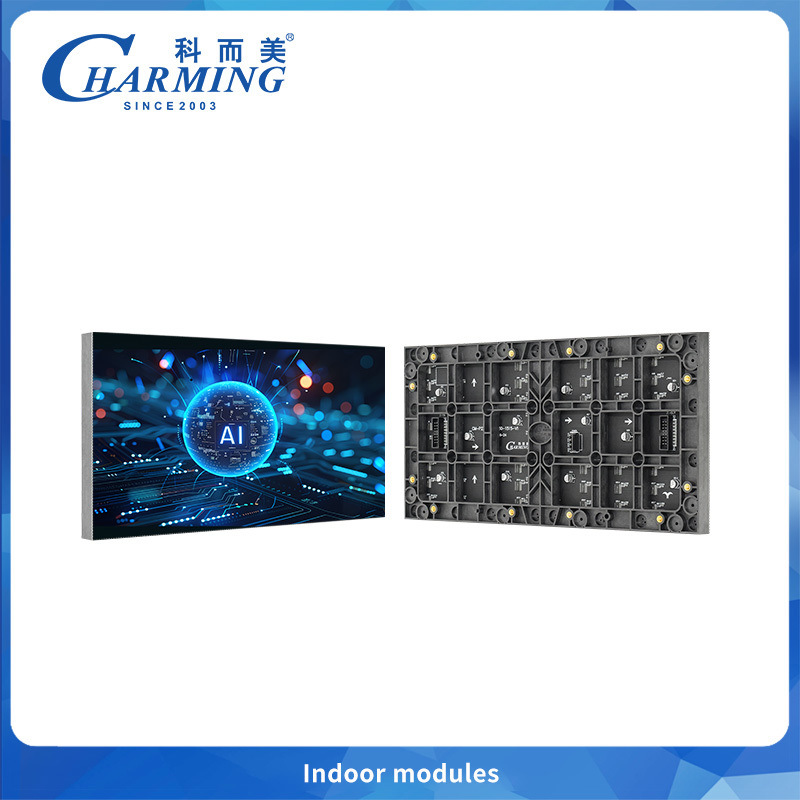

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity

Production Detail


The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 0



Specification


Type Number P2.22
Dim ension(MM) 320*160MM
Module Maximum power(w) 20W
Best Viewing Distance(M) ≥2.2M
LED Standard SMD2020
Scan Mode 1/36Scan
Pixel Density(Dot/m²) 202500Dot/m²
Refresh Rate(Hz)
7680Hz
Brightness(CD/ m²)
>700
Pixel Pitch(MM) 2.22
Protection Level
IP42
Grey Level
14-16bit
Working Temperature
-20~50°C
Working Humidity
10%~90%RH
Life Span
≥50000 Hours
Working Voltage
DC 5V



The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 1The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 2The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 3The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 4

Company profile

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 5

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 6

Certificate

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 7

Question



1: Do you accept sample orders?
We support sample orders for both LED modules and complete screens for quality inspection.

2: What's the production lead time?
Modules ship in 1-5 days; screens under 100㎡ deliver within 15 working days.

3: Quality guarantee?
All products come with 12-month warranty.

4: How to place an order?
Just tell us your screen size and application!

5: Most economical shipping method?
Air is faster but expensive; sea freight saves money!

6: Payment options?

Bank transfer accepted; payment recommended for security.Let me know if you'd like any adjustments to these versions!
